This illustration is of a 4 bed new build property where the client wanted to explore different external materials.
New build initial sketch
Small property planning sketch
This initial sketch shows a front extension to a small property.
The neighbouring properties have been shown to enable the production of a design that minimises any impact on the neighbour, complies with planning requirements and fits in with the street scene.

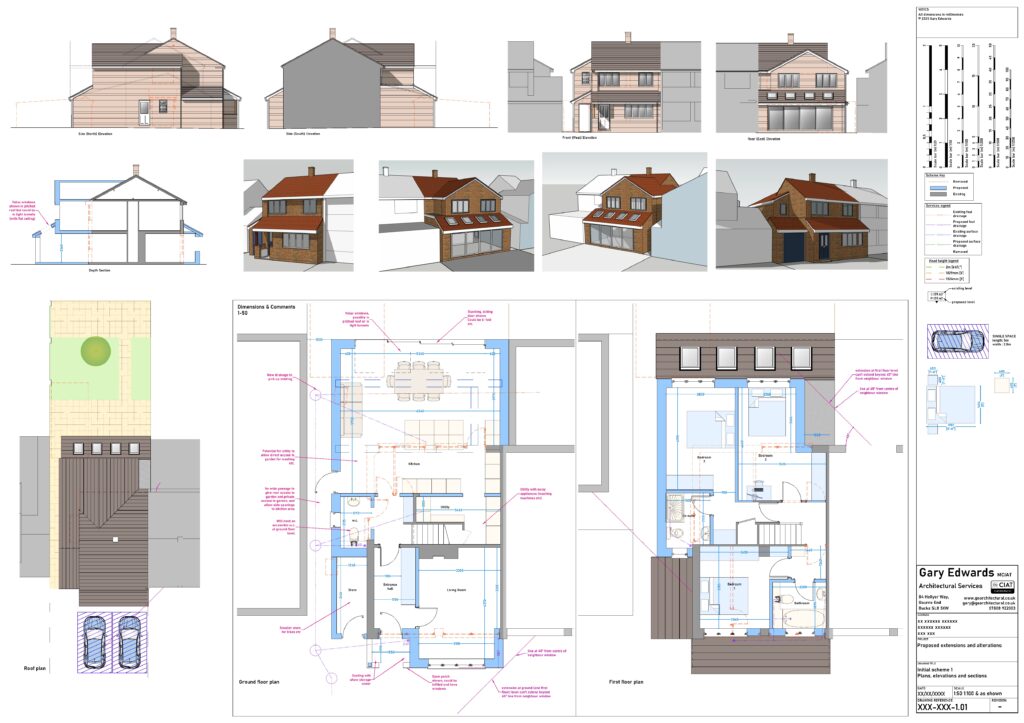

Initial scheme drawing
This is an example of an annotated scheme drawing that I produced to show the client the site constraints along with some possible options for extending and altering their property.
Detailed design example

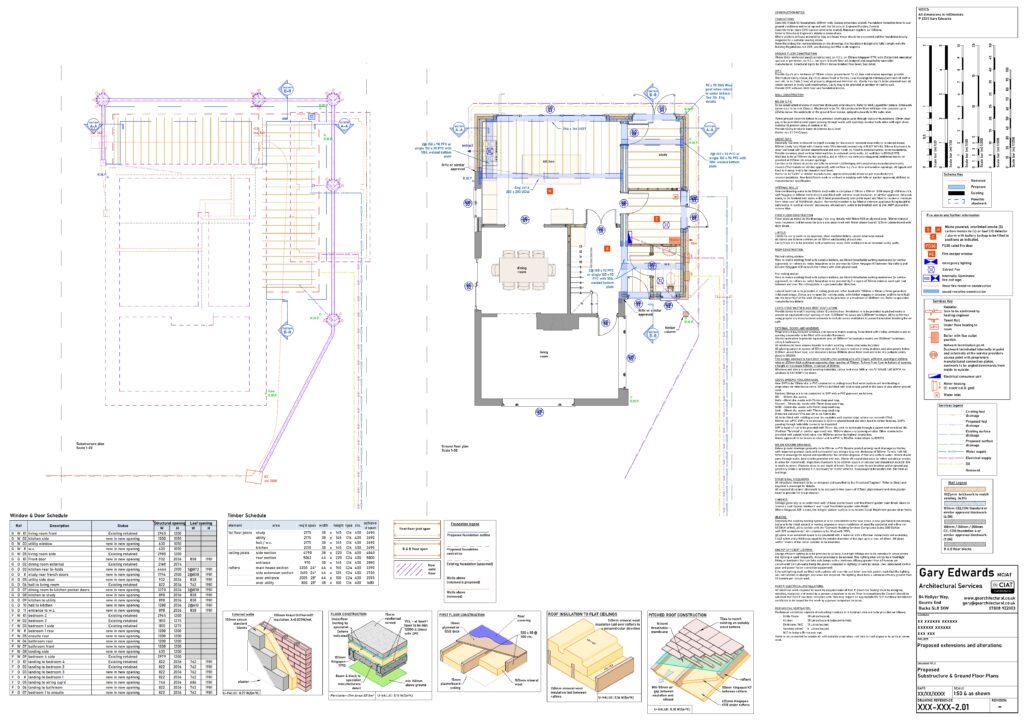

These are examples of a plan and section drawing which were created as part of a larger set to gain building control approval and for contractors to both price and construct from on site.
